Sustainable Hybrid Pavement Concrete Floor
Concrete Pavements haven't changed in decades - Until Now
Why Engineers choose CC-Grid Floor
- Install over old surfaces or base layer
- No need for form work, rebar
- Fast setting and low maintenance
- Ideal for high-traffic and industrial zones
- A smarter, safer, faster pavement upgrade
Why It Matters
STRONGER
- M60 concrete performance from an M30 mix
- Hybrid rigid–flexible behaviour improves load distribution and reduces cracking
FASTER
- CC Grid system clips together easily
- Faster installation / shorter project timelines / higher productivity
GREENER
- At just 40 mm thickness, the system significantly reduces concrete consumption
- 100% recycled plastic. Less concrete. Less carbon
How it Works
- The concrete within the grid is cured completely
- A grinding or polishing machine is used to remove the top thin layer of concrete
- As the surface is ground, the CC grid lines become exposed
- This results in a uniform, patterned surface that acts as both a structural and aesthetic feature
Benefits
- Unique grid-pattern decorative flooring
- Strong, durable, and visually appealing
- Ideal for commercials
ABOUT
Civil chemicals introduces a hybrid technology that combines the rigidity of concrete with the flexibility of engineered polymer grids. The result is a pavement that resists cracking, handles heavy traffic, and installs in a fraction of the time. Built with recycled materials, CC-Grid is as sustainable as it is strong.
CC-Grid floor is the evolution of concrete surfaces — unitized, flexible, and visually uniform. Designed for modern spaces, high-load floors, and long-life pavements. A blend of engineering intelligence and environmental.
Why It Matters
Using less concrete lowers carbon emissions, conserves resources, improves air quality, and cuts construction costs—building a more sustainable future.
New Icon Stronger Faster
- Built for industries, farms, retail, mining, golf courses, car parks, walkways, ramps, and more.
- Background — 50–75% transparent grid and finished floor picture.
CC-Grid Floor – SIMPLE INSTALLATION STEPS

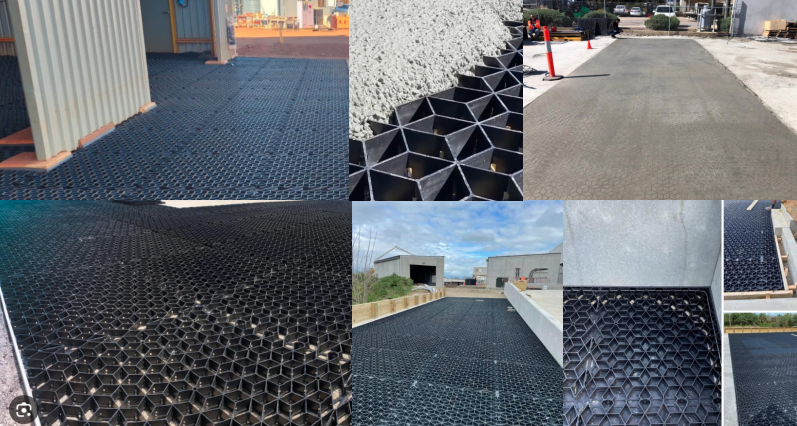

LAY THE GRID
- Place the grid sheets on the ground
- Press firmly on the clips so each sheet locks properly
INSTALL EDGE SUPPORTS
- Fit CC grid edging on all exposed edges to keep concrete inside the cells
- In areas where vehicles may drive off the edge, install steel wire as extra protection
FILL WITH CONCRETE
- Recommended mix:
-> M30, 100–120 slump, 12mm aggregate - Use a rake to level concrete close to the top of the grid
- Use a surface vibrating screed for a smooth, even pass
FIRST FINISH
- After screeding, run a power trowel at slow speed with flat blades
- Use a rubber squeegee to remove excess slurry and expose the top of the grid
FINAL FINISH
- Once bleed water disappears, do another slow pass with the trowel
- When your thumb leaves only a slight mark, it is ready for the final finish
- Blades should scrape lightly — if stones flick, they’re too high
- Use finishing aid not water, during finishing
CURING
Concrete must be cured properly:
- Option 1: Pond Curing
Build a sand bund around edges and flood the surface
Keep submerged for 3 days (best method) - Option 2: Curing Compound
When walkable, spray a water-based curing compound over the surface
DECORATIVE FINISH
Exposed Grid Pattern
After the concrete has fully cured, the surface can be mechanically ground or polished to reveal the CC-grid pattern beneath the topping layer. This creates a decorative, geometric finish where the grid lines become visible, giving a modern and unique architectural look.
